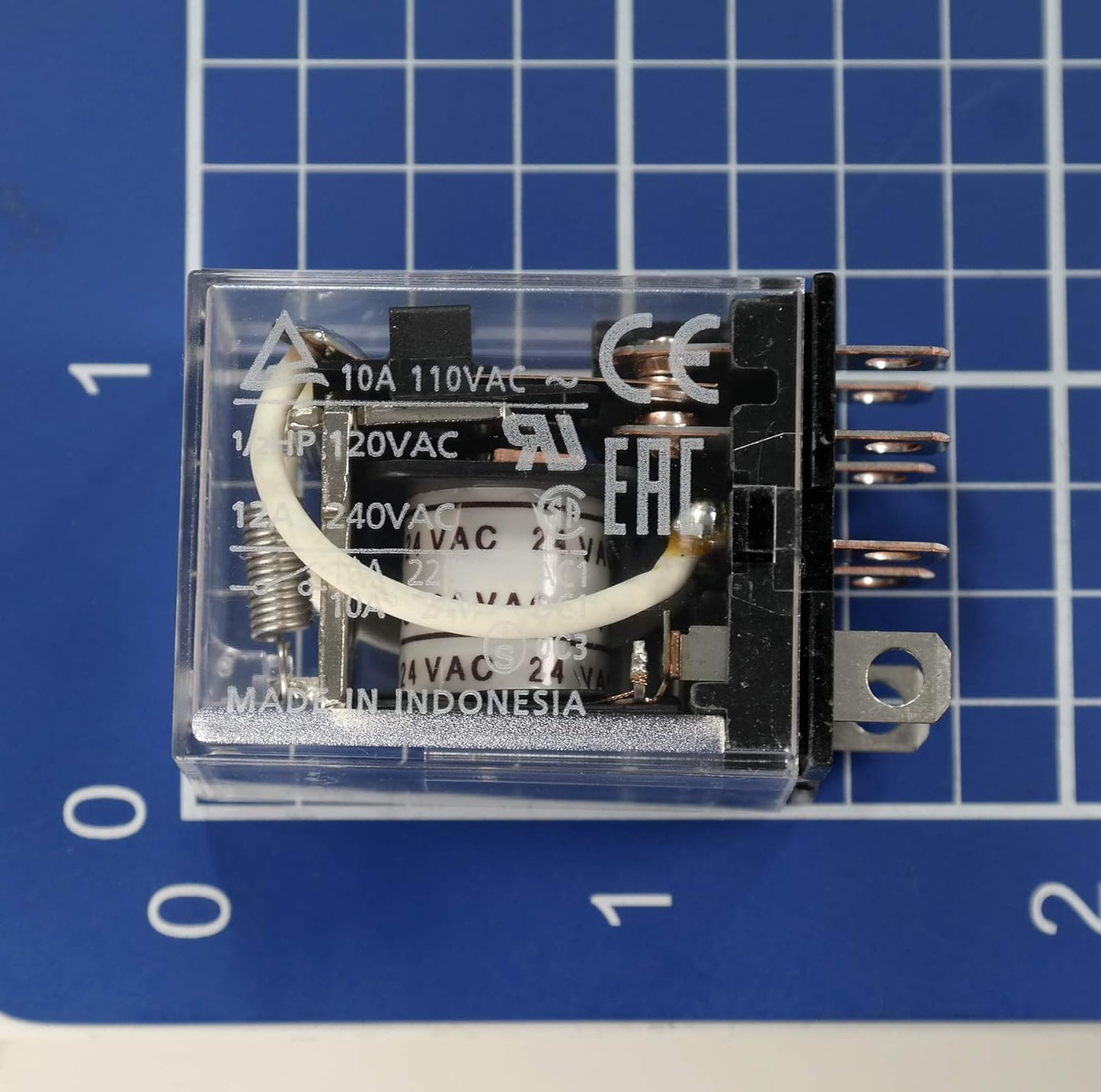

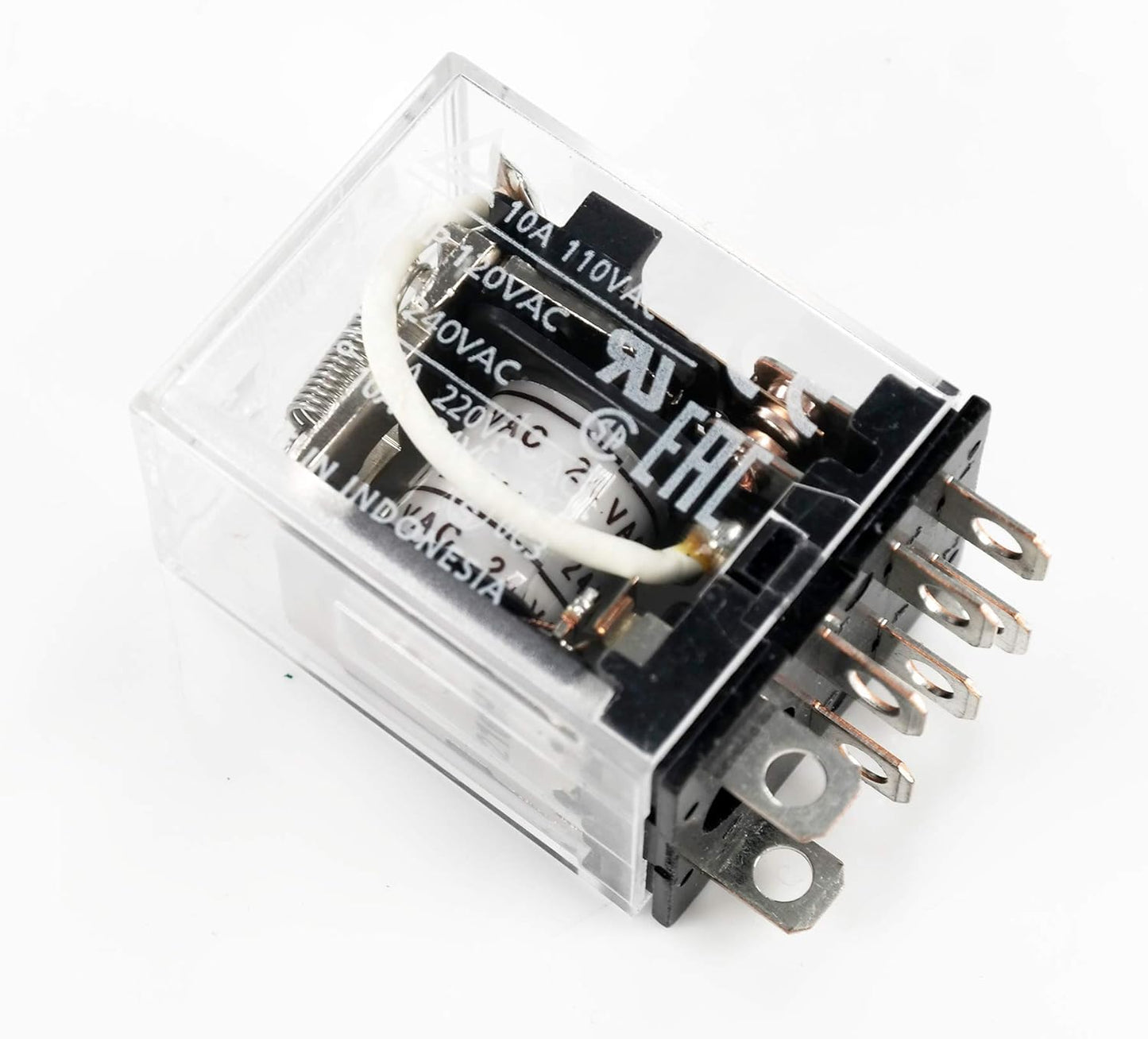

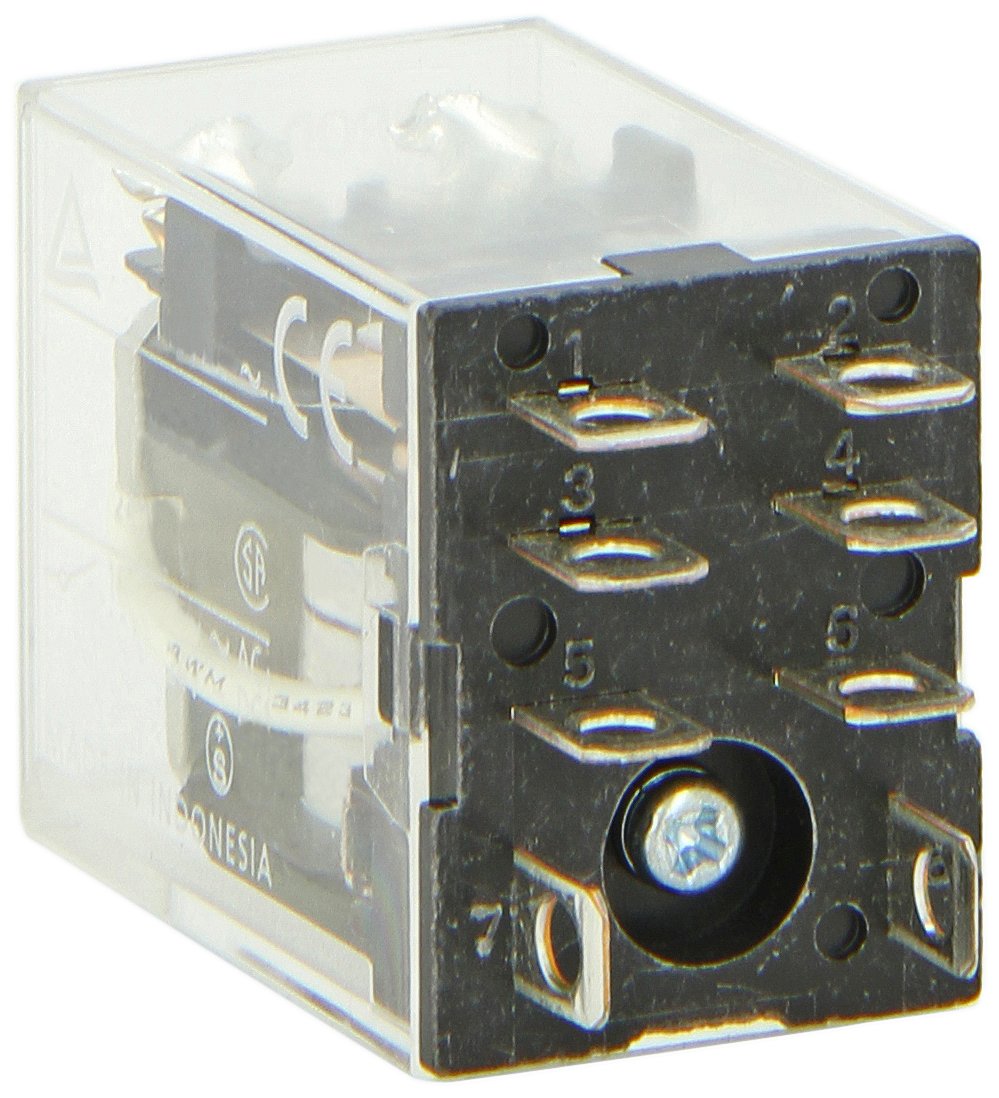

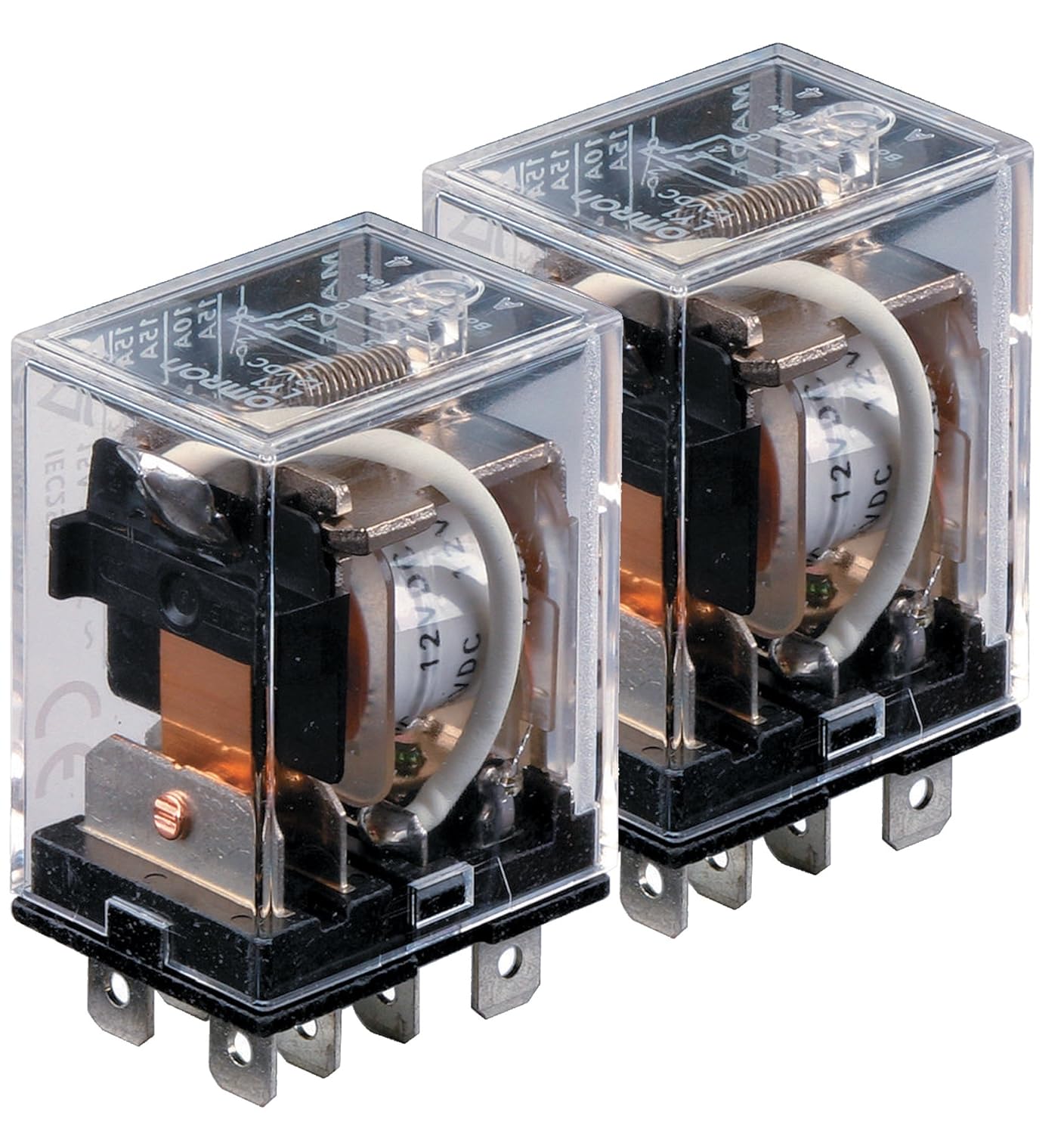

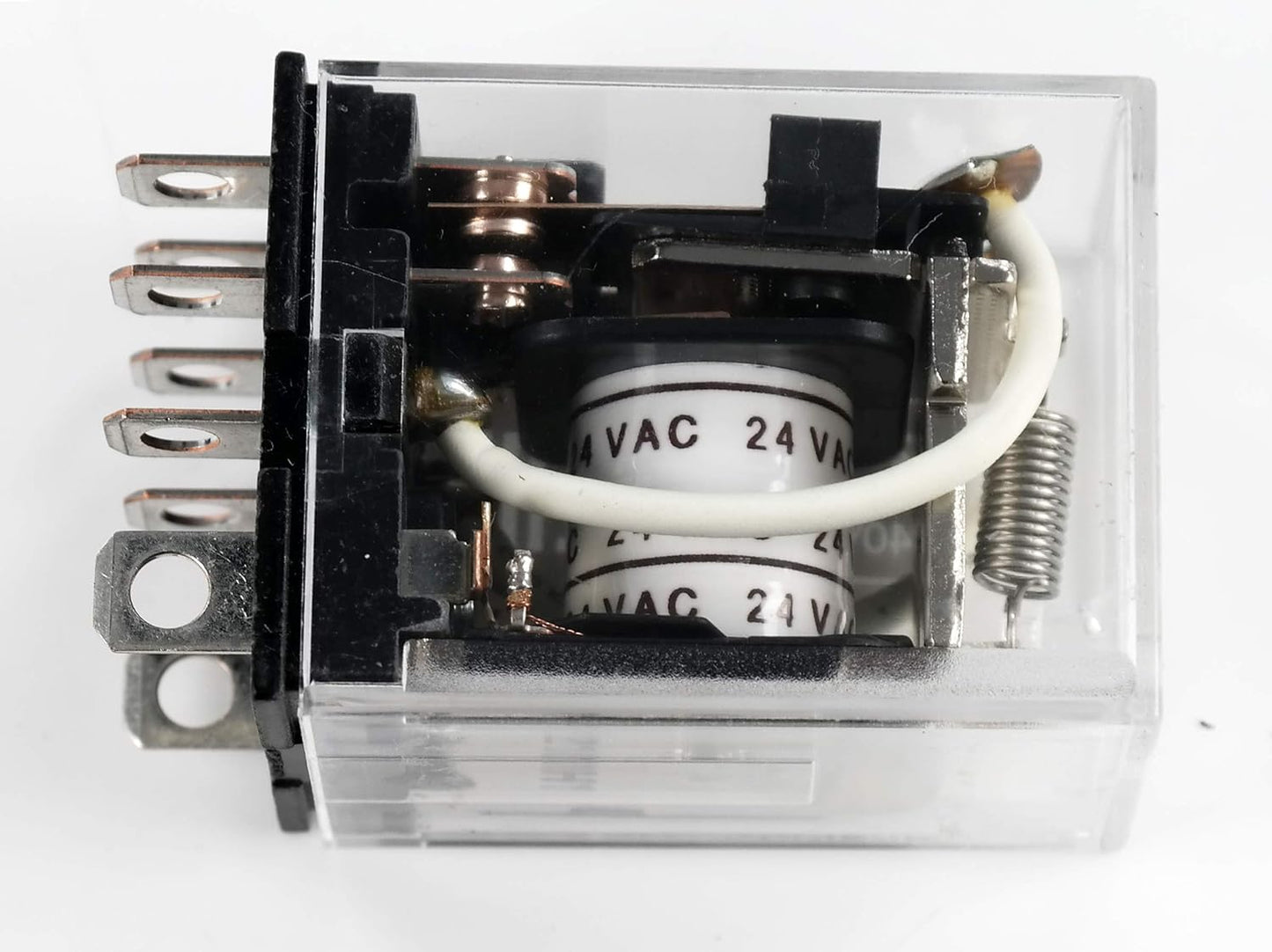

Omron LY2-AC24 (2-Pack) General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Standard Bracket Mounting

Omron LY2-AC24 (2-Pack) General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Standard Bracket Mounting

$29.99
$29.99
Sale Sold out
Shipping calculated at checkout.

Overview

Arc barrier equipped.
High dielectric strength (2,000 VAC).
Long dependable service life assured by Ag-Alloy contacts.
Choose models with single or bifurcated contacts,
LED indicator, diode surge suppression,
Push-to-test button, or RC circuit.
All models meet UL and CSA
Approvals; VDE, LR, and SEV
Approved versions are available

Product Attribute

Attribute Value

Manufacturer:

Omron

Product Category:

General Purpose Relays

Product:

Power Relays

Type:

Standard

Coil Voltage:

24 VAC

Relay Contact Form:

2 Form C (DPDT-NO, NC)

Contact Current Rating:

10 A

Contact Termination:

Plug In

Mounting Style:

Panel Mount

Switching Voltage:

250 VAC, 125 VDC

Coil Termination:

Plug In

Coil Type:

Non-Latching

Coil Resistance:

180 Ohms

Coil Current:

53.8 mA

Contact Material:

Silver Alloy (Ag)

Series:

LY

Length:

28 mm

Width:

21.5 mm

Height:

36 mm

Brand:

Omron Automation and Safety

Contact Form:

DPDT (2 Form C)

Power Consumption:

1.2 VA

Part # Aliases:

LY2AC24NC 1608300 LY2AC24

Unit Weight:

1.410958 oz
