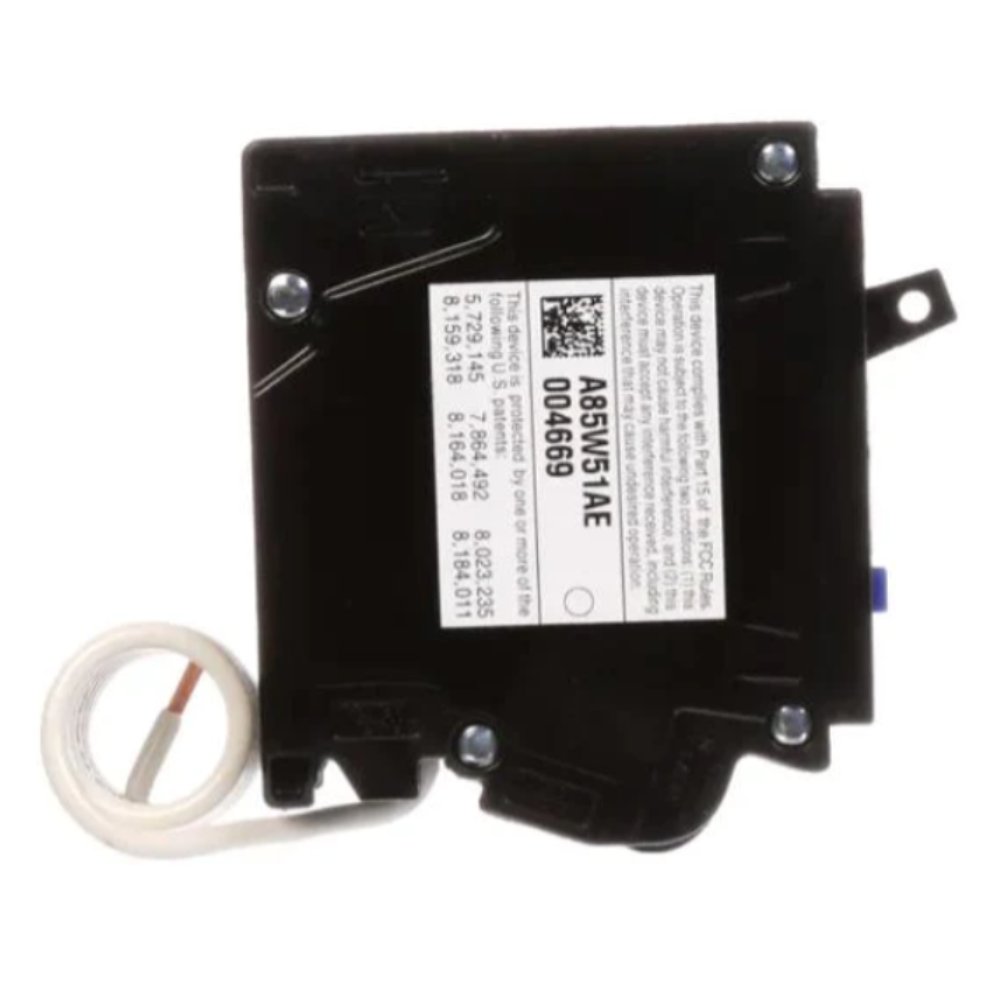

Siemens 15 Amp Arc Fault AFCI Breaker QA115AFC Combination Type Circuit Interrupter, 120V AC, Single Phase, 10kA at 120V AC, 1 Pole
Siemens 15 Amp Arc Fault AFCI Breaker QA115AFC Combination Type Circuit Interrupter, 120V AC, Single Phase, 10kA at 120V AC, 1 Pole
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Couldn't load pickup availability
SIEMENS QA115AFC Miniature Circuit Breaker: 15A Amps, 120V AC, Single Phase, 10kA at 120V AC, 1 Poles
Product Details
Brand SIEMENS
Amps 15 A
AC Voltage Rating 120V AC
Circuit Breaker Type Combination Arc Fault Circuit Interrupter
Number of Poles 1
DC Voltage Rating Not Rated
Circuit Breaker Actuator Toggle
Circuit Breaker Mounting Style Plug In
Phase Single
Max. AIR Rating 10kA at 120V AC
For Use With Siemens Single Phase Load Center
Terminal Connection Plug-in
Length 2.56 in
Width 1 in
Depth 3.05 in
Min. Wire Size 12 AWG (Al); 14 AWG (Cu)
Max. Wire Size 8 AWG
Standards UL 1699
Series QA
Description
These Q series miniature circuit breakers plug into place in panelboards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard or load center.
