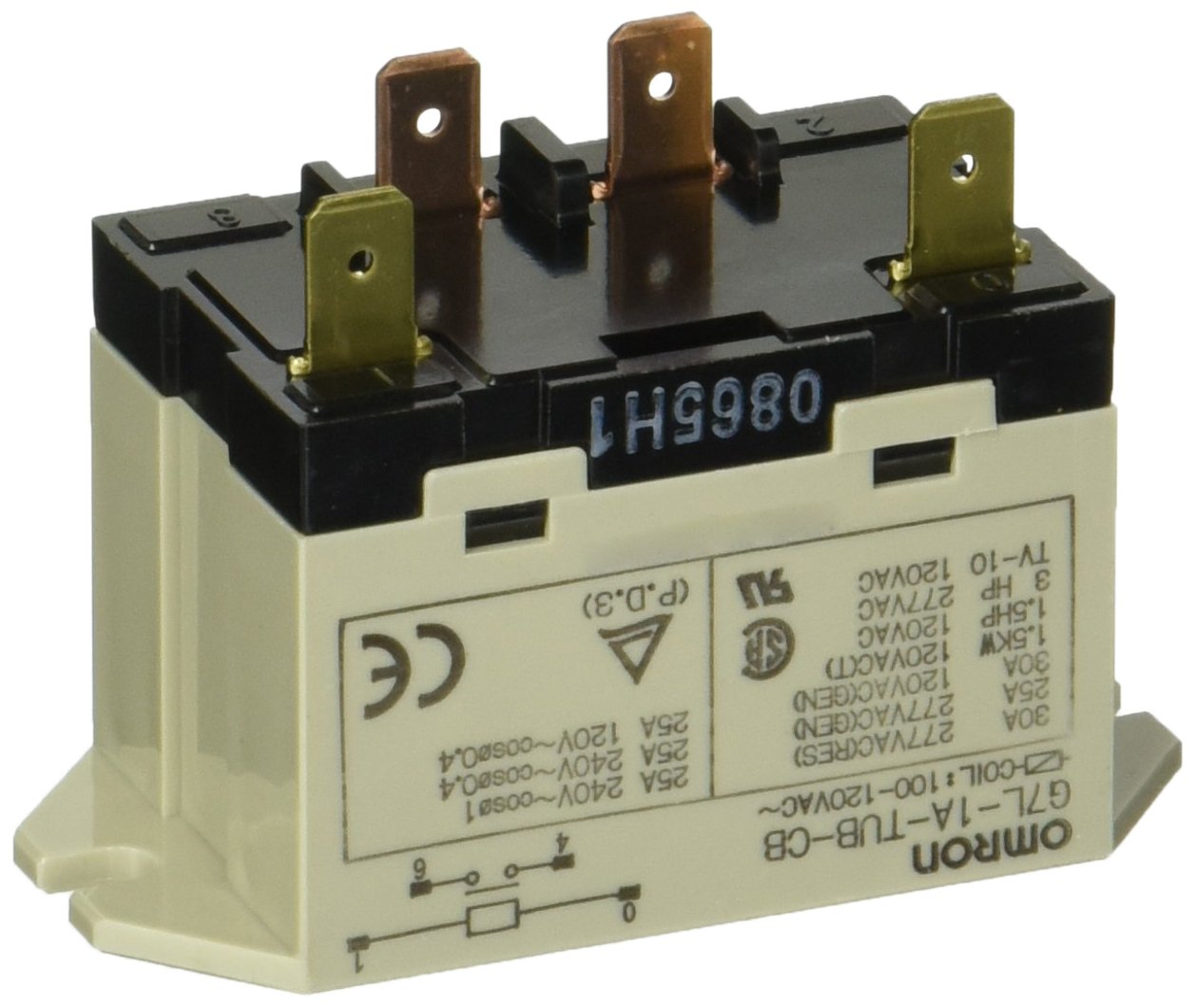

Omron G7L-1A-TUB-CB-AC100/120 Electromechanical Relay 12VDC 72Ohm/104Ohm 1A SPST-NO Plug-In Relay
Omron G7L-1A-TUB-CB-AC100/120 Electromechanical Relay 12VDC 72Ohm/104Ohm 1A SPST-NO Plug-In Relay
Couldn't load pickup availability
Description:
The G7L-1A-TUB-CB-AC100/120 is a Power Relay with AC coil. This G7L-series relay has 1NO (SPST) Ag alloy contact with test button. High-capacity, High-dielectric-strength relay compatible with momentary voltage drops. 0.25 inch quick-connect terminals and upper bracket mounting. UL Class B construction standard. Safety design with contact gap of 3mm. Wide-range AC-activated coil Miniature size for maximum switching power, particularly for inductive loads Flame-resistant materials (UL94V-0 qualifying) used for all insulation material No contact chattering for momentary voltage drops up to 50% of rated voltage -25 to 60°C Operating temperature range Applications Power Management, HVAC, Lighting, Motor Drive & Control
| Description | Value |
| Coil Resistance | 5.26 kOhm |
| Contact Arrangement | SPST-NO |
| Contact Material | Silver Cadmium Oxide |
| Minimum Dropout Voltage | 18 Vac |
| Mounting | Bracket Mount |
| Operate Time | 30 ms |
| Operating Temperature | -20 to 60 °C |
| Product Dimensions | 68.5 x 33.5 x 47 mm |
| Product Length | 68.5 mm |
| Relay Construction | Non-Latching |
