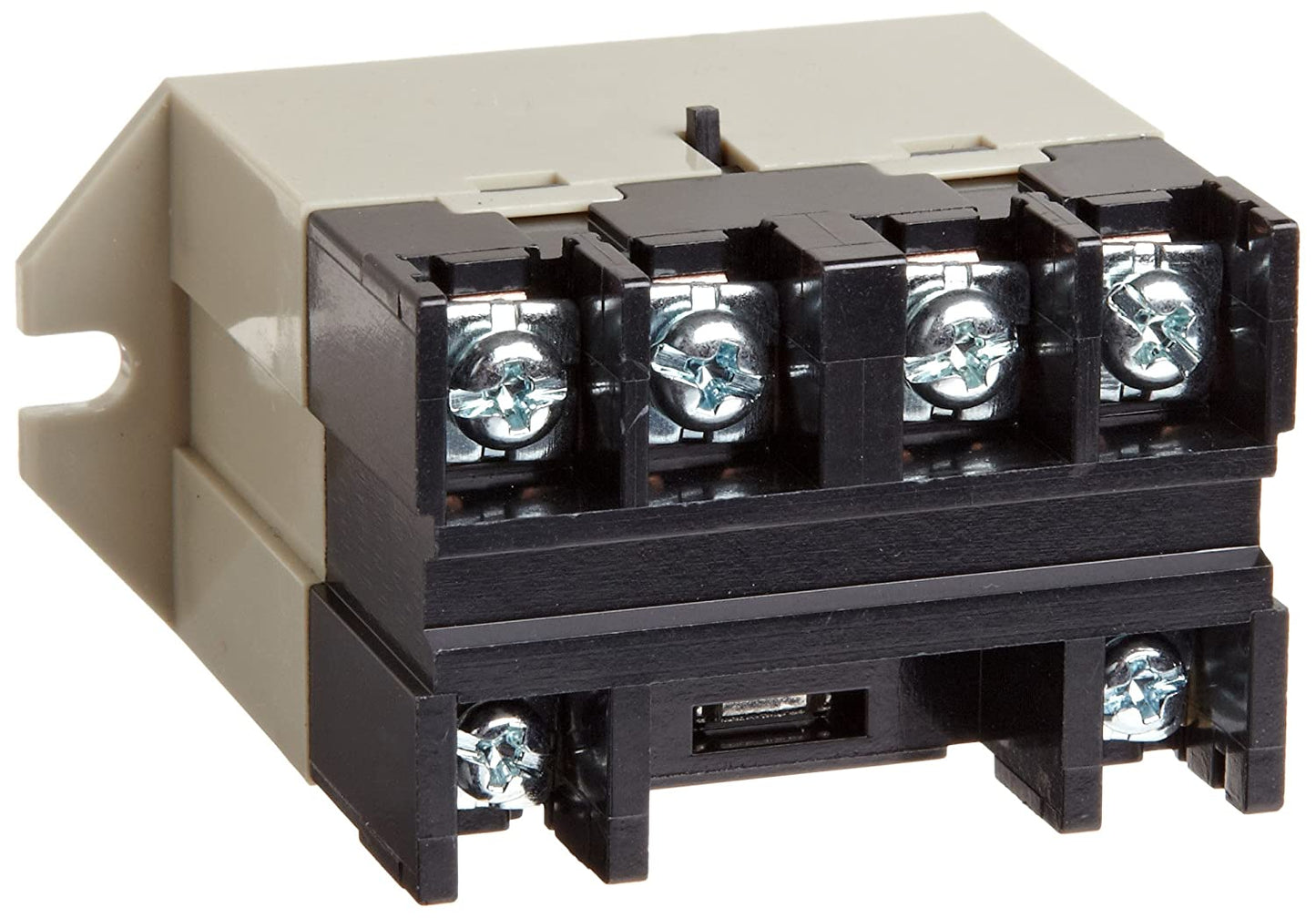

Omron G7L-2A-BUBJ-CB-DC24 General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Chassis Mount

Category

Relays, Power Relays, Over 2 Amps

Mfr

Omron Electronics Inc-EMC Div

Series

G7L

Package

Bulk

Product Status

Active

Mounting Type

Chassis Mount

Coil Voltage

24VDC

Contact Form

DPST-NO (2 Form A)

Contact Rating (Current)

25 A

Switching Voltage

250VAC - Max

Coil Current

79 mA

Coil Type

Non Latching

Features

Test Button

Termination Style

Screw Terminal

Seal Rating

-

Coil Insulation

Class B

Must Operate Voltage

18 VDC

Must Release Voltage

3.6 VDC

Operate Time

30 ms

Release Time

30 ms

Operating Temperature

-25°C ~ 60°C

Contact Material

Silver Tin Indium (AgSnIn)

Relay Type

General Purpose

Coil Resistance

303 Ohms

Base Product Number

G7L
