Omron
Omron G7L-2A-TUB-J-CB-AC24 General Purpose Well Pump Start Relay With Test Button
Omron G7L-2A-TUB-J-CB-AC24 General Purpose Well Pump Start Relay With Test Button
Couldn't load pickup availability
Omron G7L-2A-TUB-J-CB-AC24 General Purpose Well Pump Start Relay With Test Button, Class B Insulation, QuickConnect Terminal, Upper Bracket Mounting, Double Pole Single Throw Normally Open Contacts, 71 mA Rated Load Current, 24 VAC Rated Load Voltage
|
Product Attribute |
Attribute Value |
|
Manufacturer: |
Omron |
|
Product Category: |
General Purpose Relays |
|
RoHS: |
Details |
|
Product: |
Power Relays |
|
Type: |
Miniature |
|
Coil Voltage: |
24 VAC |
|
Relay Contact Form: |
2 Form A (DPST-NO) |
|
Contact Current Rating: |
25 A |
|
Contact Termination: |
Quick Connect |
|
Mounting Style: |
Panel Mount |
|
Switching Voltage: |
250 VAC |
|
Coil Termination: |
Quick Connect |
|
Coil Type: |
Non-Latching |
|
Coil Current: |
71 mA |
|
Contact Material: |
Silver Alloy (Ag) |
|
Series: |
G7L |
|

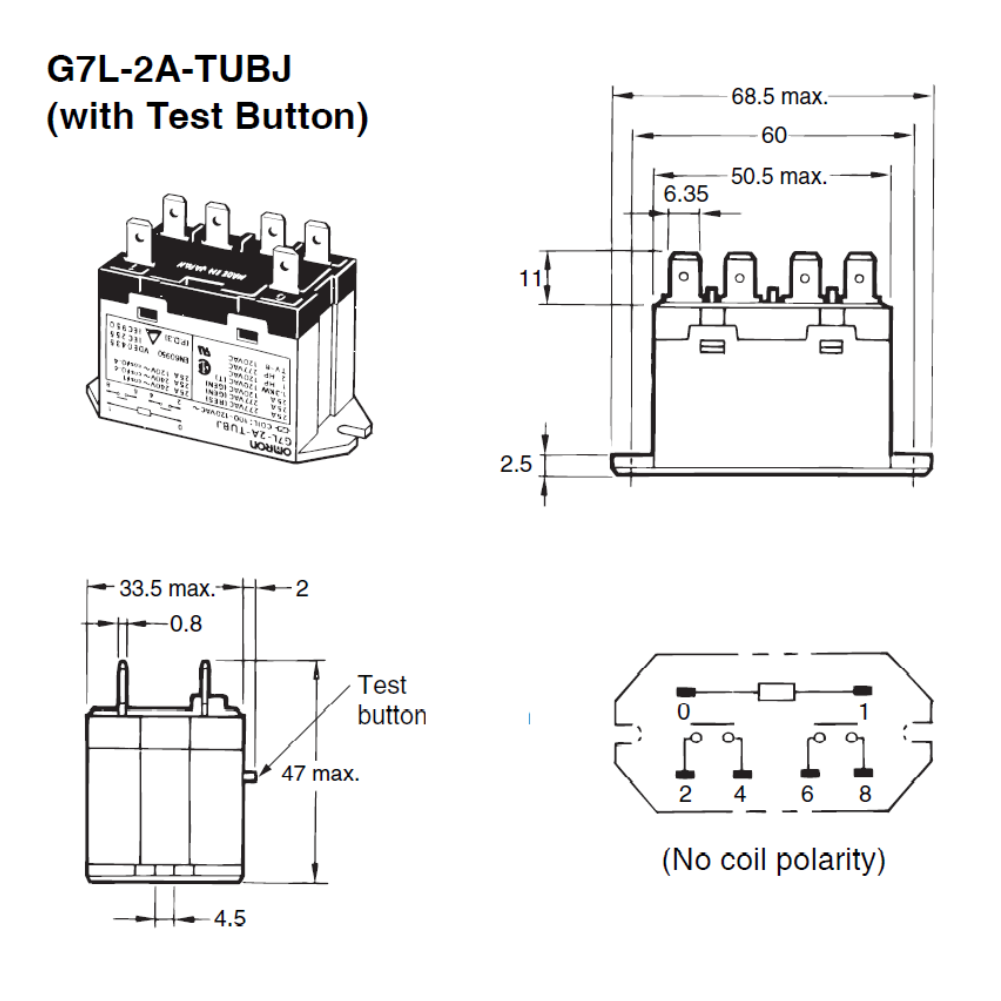

Length: |
50.5 mm |
|
Width: |
33.5 mm |
|
Height: |
47 mm |
|
Brand: |
Omron Electronics |
|
Contact Form: |
DPST (2 Form A) |
|
Power Consumption: |
2.5 W |
|
Product Type: |
General Purpose Relays |
Relays
Relays from Omron Electronics include PCB power relays, DC power relays, signal relays, solid-state relays, and automotive relays.
Omron Electronics Relays support a wide range of capacities and applications.
