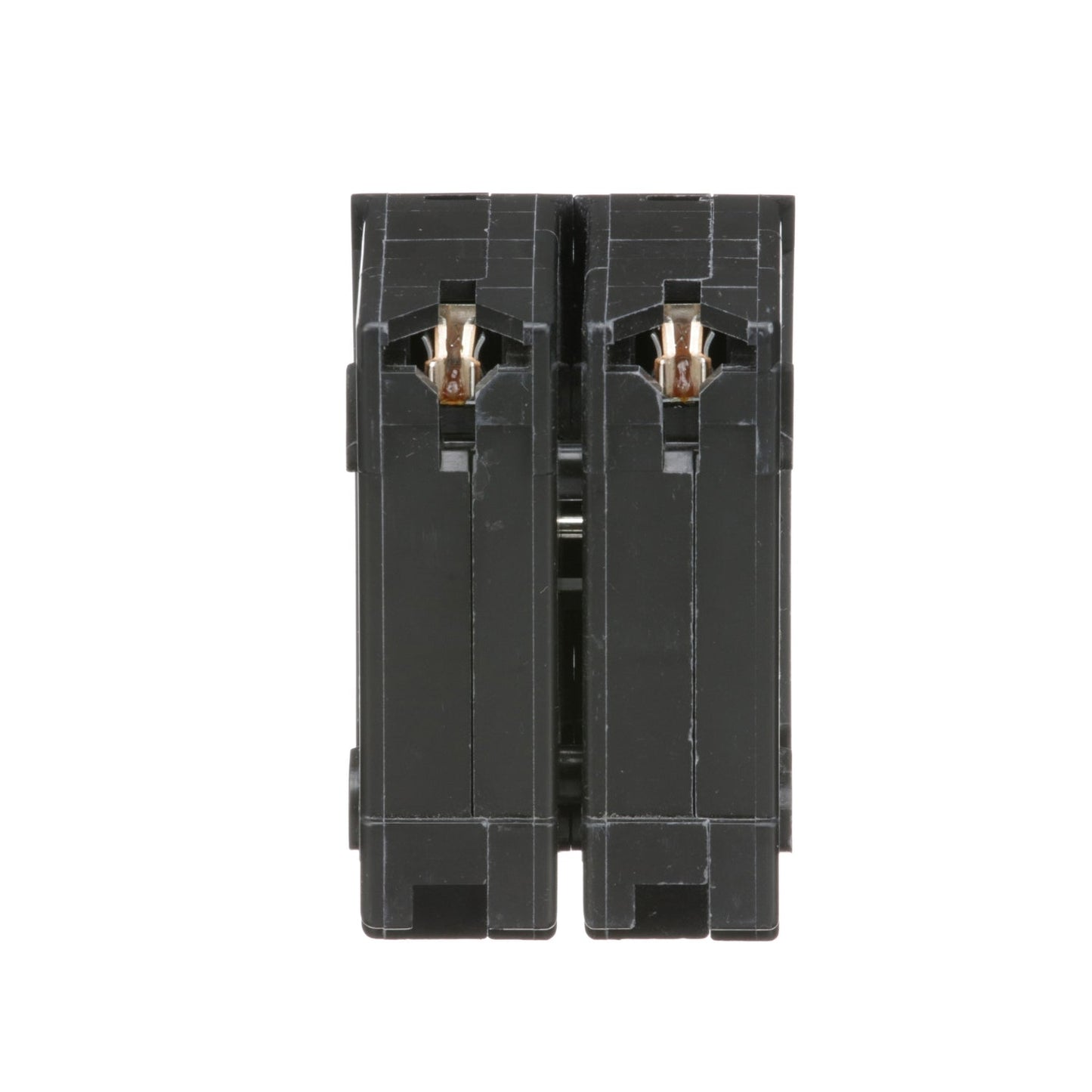

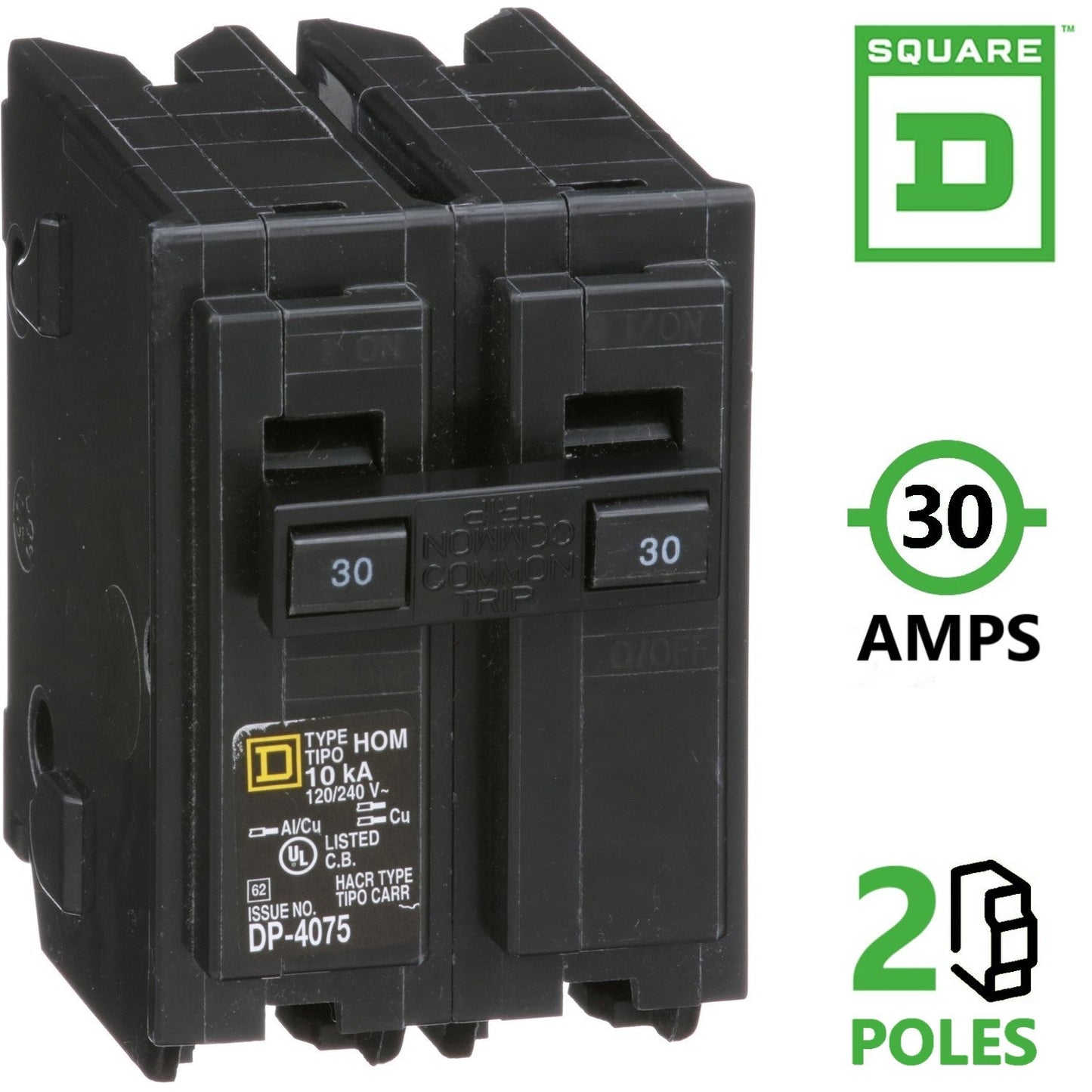

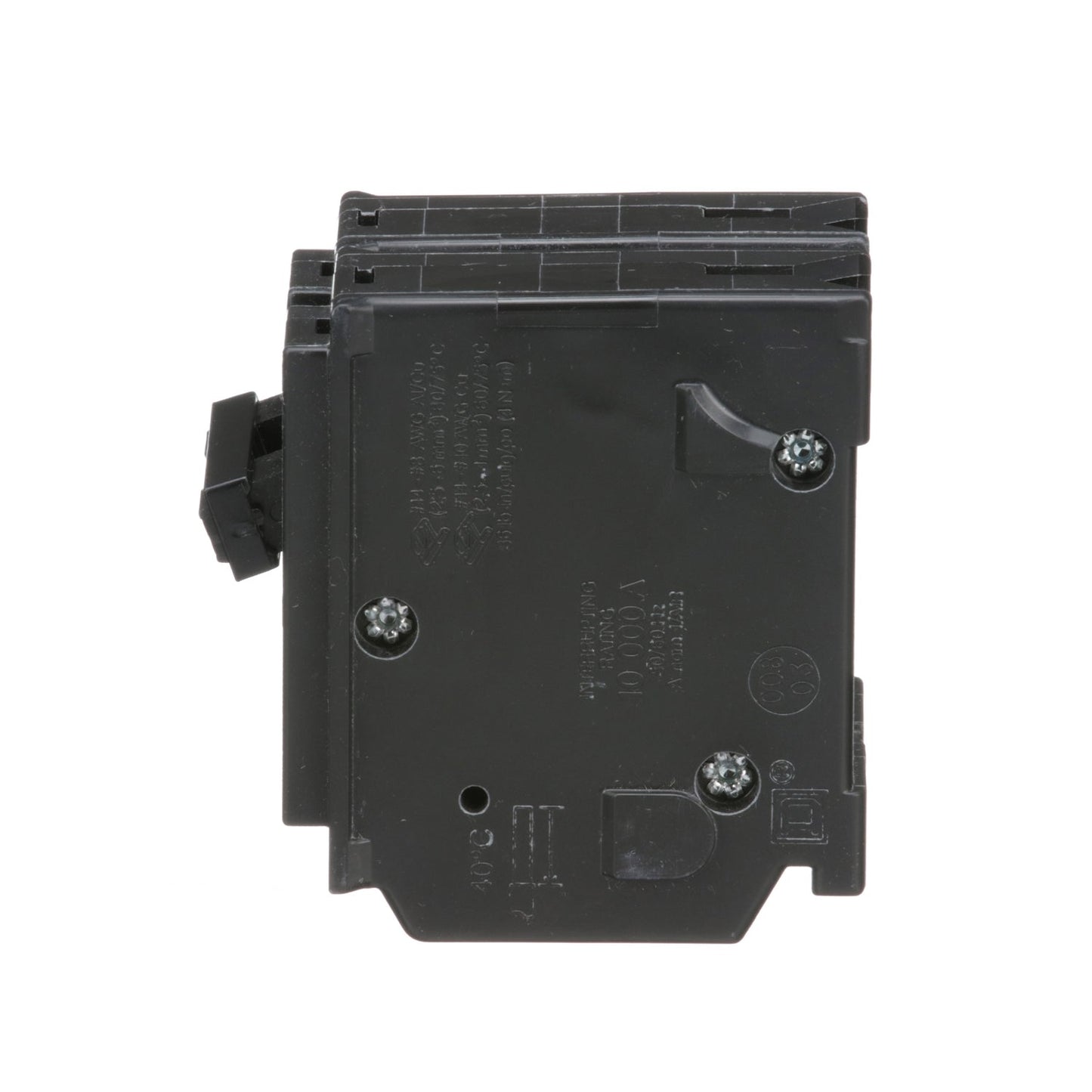

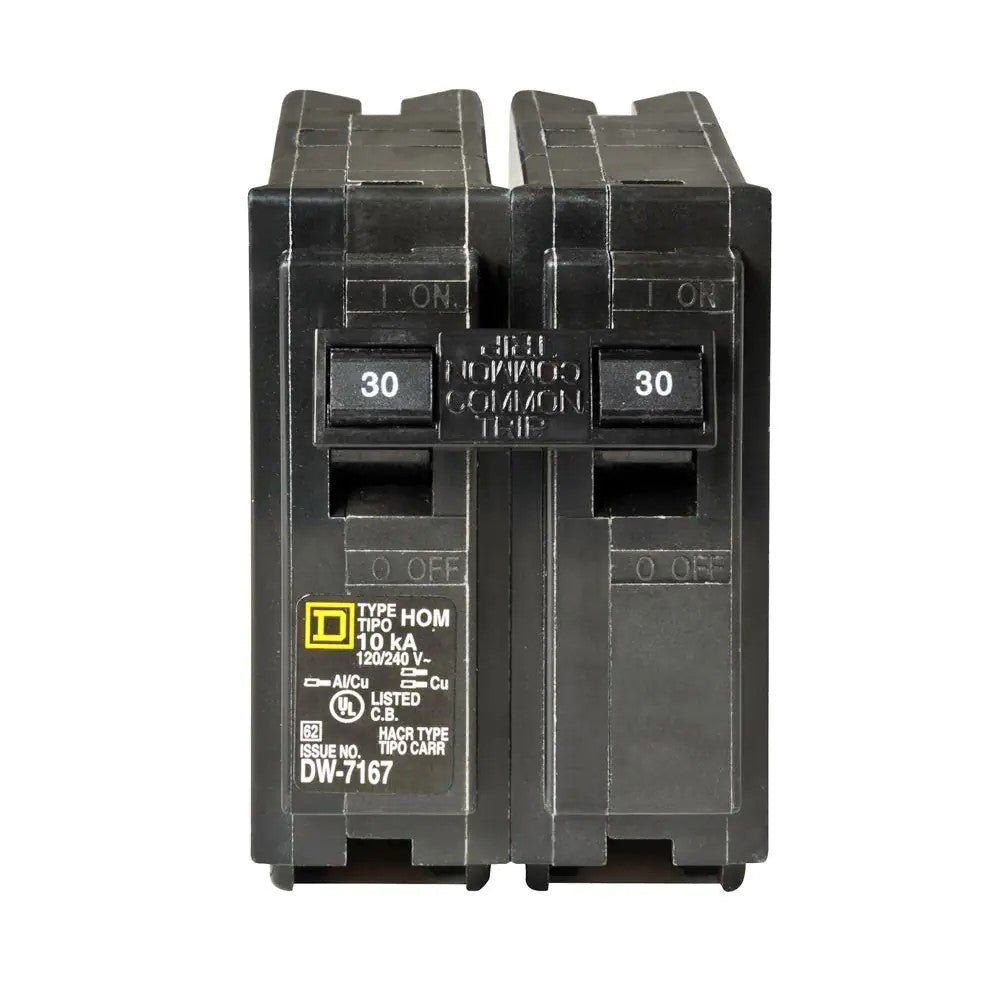

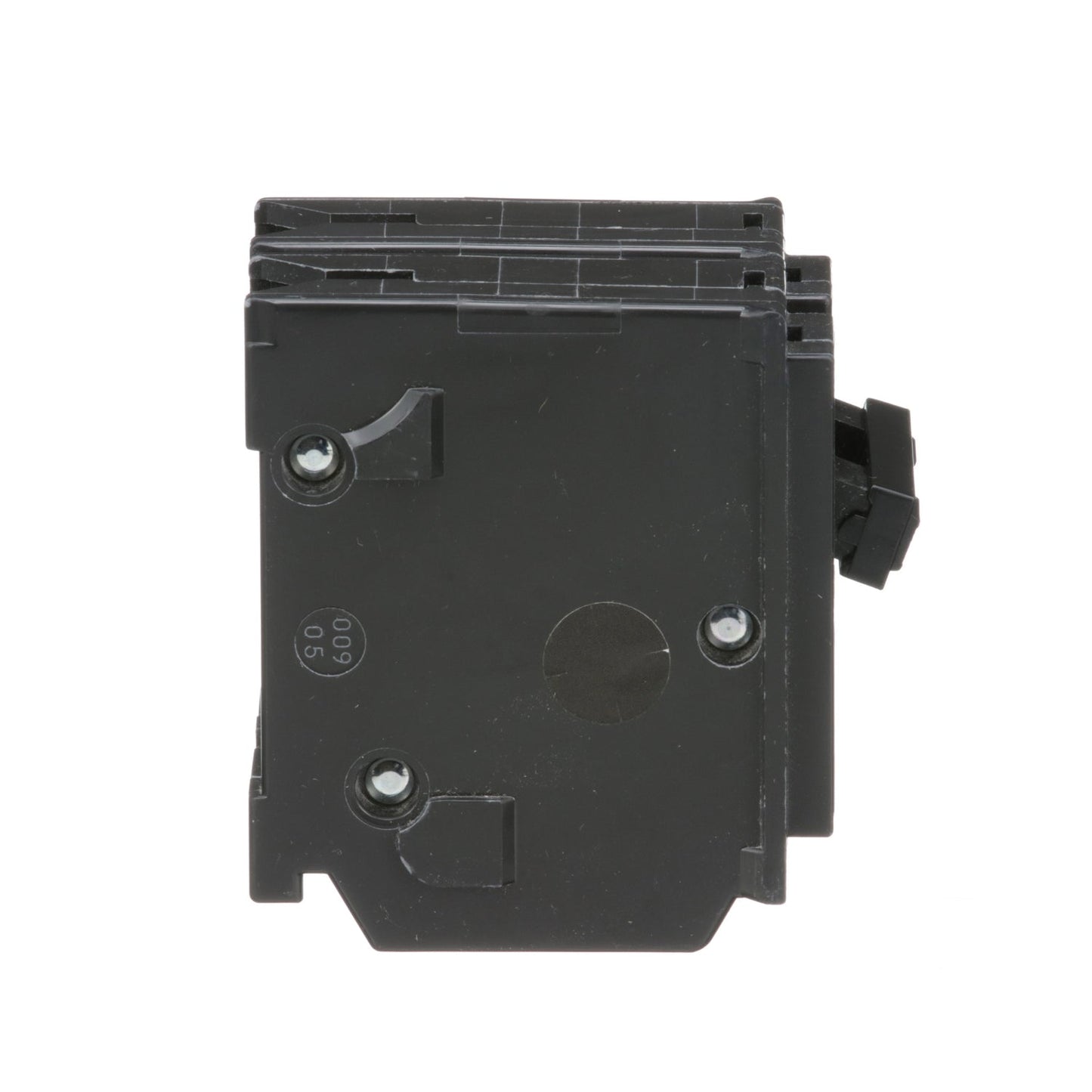

Square D 30 Amp Circuit Breaker, Homeline HOM230, 2 Pole, Plug In 30A, 120/240VAC
Square D 30 Amp Circuit Breaker, Homeline HOM230, 2 Pole, Plug In 30A, 120/240VAC
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Couldn't load pickup availability

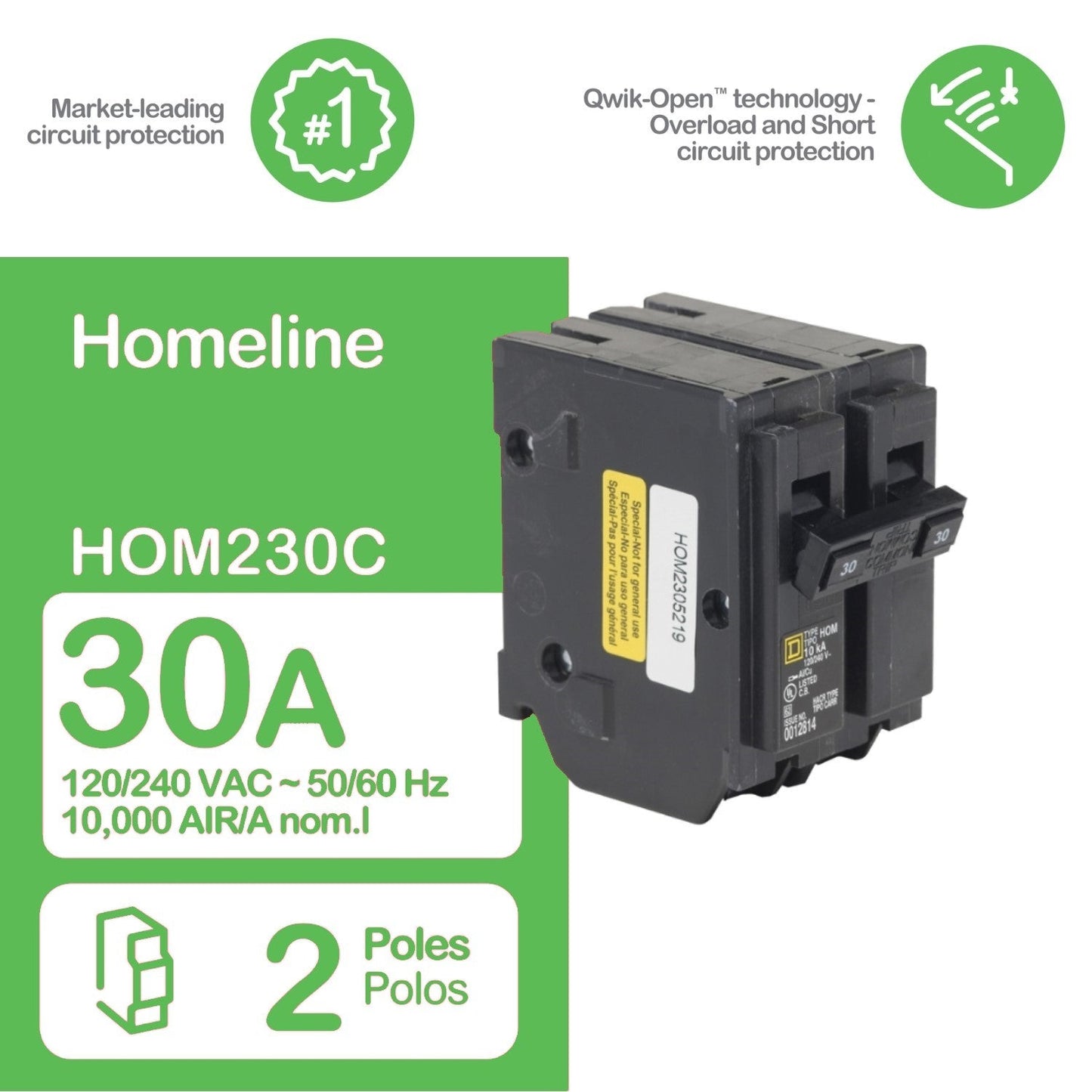

Square D Plug In Mini Circuit Breaker, Homeline, 30 Amp, 2 Pole, 120/240VAC, 10kA AIR, Standard Type, UL
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Specifications
| Product | Miniature circuit-breaker |
|---|---|
| Range | Homeline |
| Current Rating | 30 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2 |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) 2 x AWG 14...AWG 10 ( copper ) |
| Tightening torque | 35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4) |
|---|---|

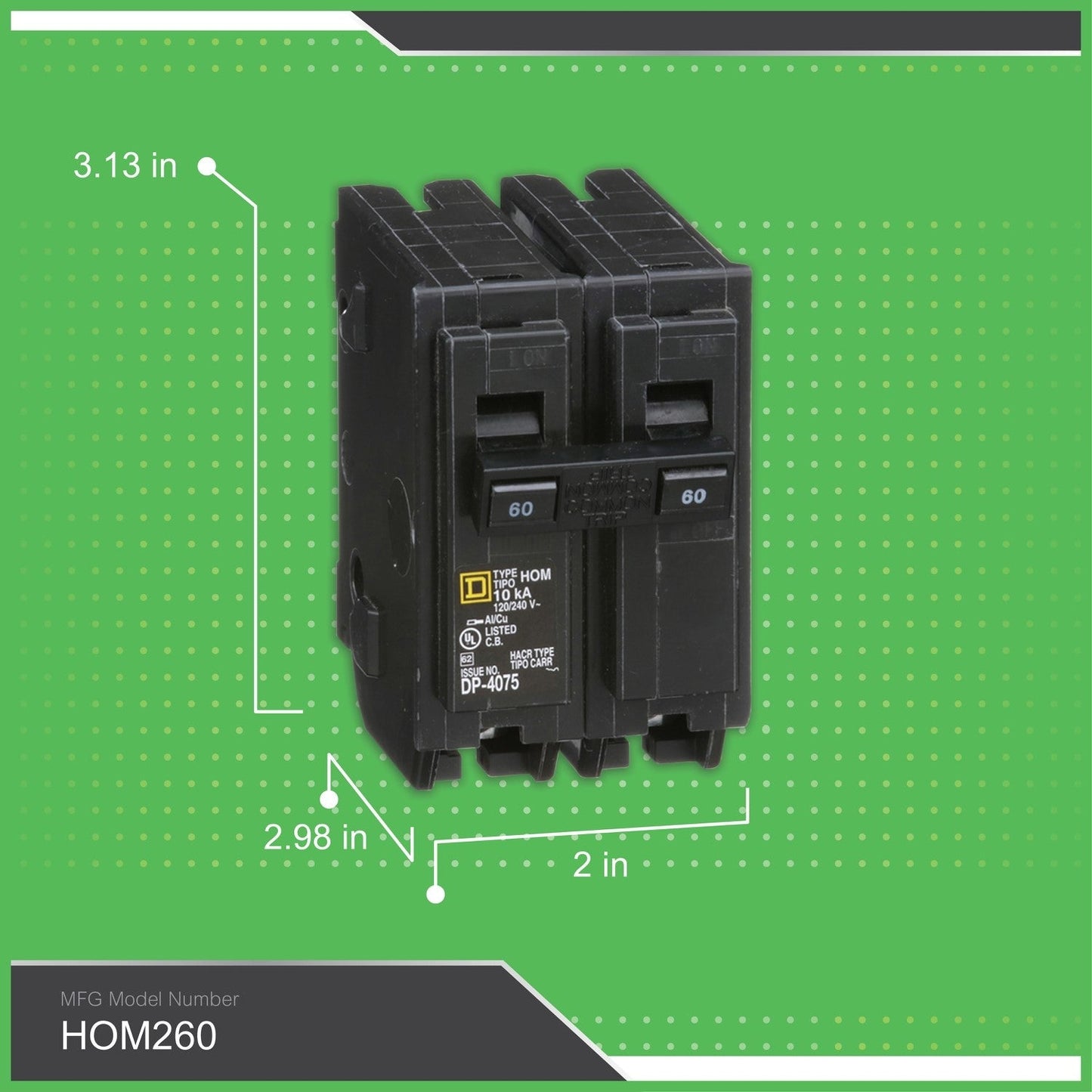

| Height | 3.13 in (79.50 mm) |
| Width | 2 in (50.80 mm) |
| Depth | 2.98 in (75.69 mm) |
